TC: Temperature Controller

TC: Temperature Controller

£1,800.00

Have any questions or need a quote?

Enter your details below and we will be in touch within 24 hours.

Features

  • Available with 1 to 4 independent channels
  • High temperature resolution
  • User defined thermistor parameters
  • Web-based interface
  • Ethernet connectivity

Overview

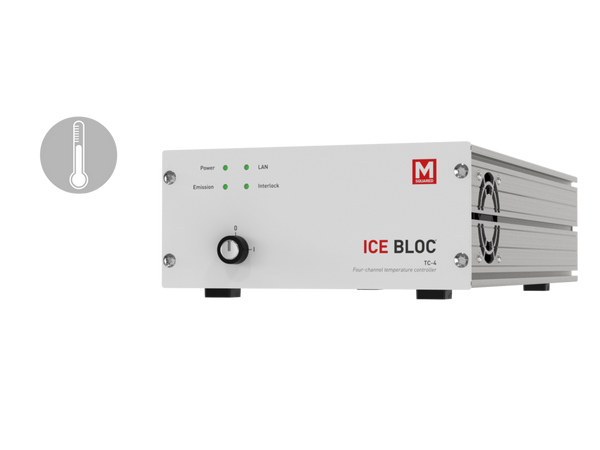

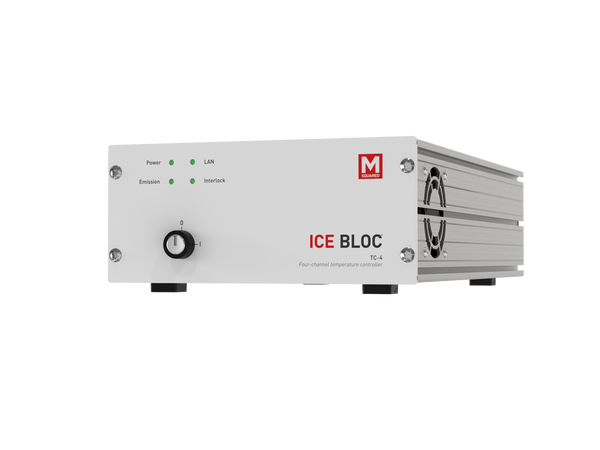

Ice Bloc TC is a high-power, precision temperature controller - available with a choice of 1 to 4 independent channels - for performing closed loop control with a temperature sensor and thermoelectric cooler/resistive heater to maintain and set the temperature of laser diodes, reference cavities, non-linear crystals, gratings and other temperature sensitive photonic devices.

Capable of controlling up to four TECs or heaters with set points in the range -70˚C to - 200˚C with a set point resolution of 1mK, Ice Bloc TC is optimised for T25 values from 10kΩ - 100kΩ but can be configured with a wider range.

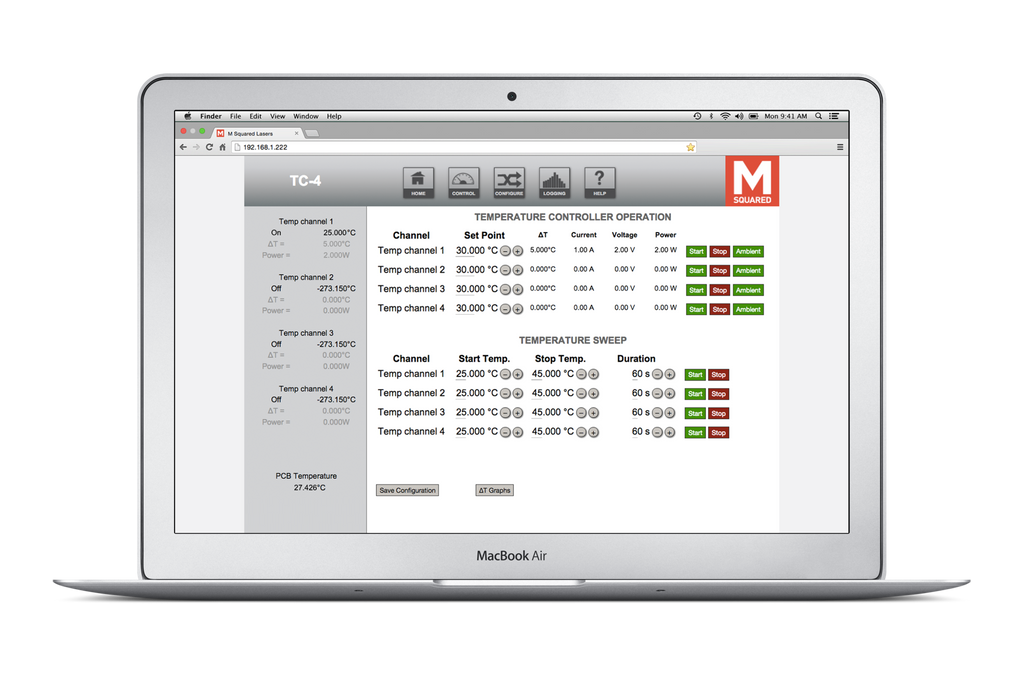

Control and monitor devices and performance, via a standard Web/LAN connection and web browser. This can be network interlocked to any other Ice Bloc.

Specifications

TEMPERATURE CONTROLLER
Output voltage per channel ±21.6 V
Output type Bi-directional, linear
Output current per channel (single channel use) Output current per channel (two channel use)
Output current per channel (four channel use) ±5 A
Maximum output power 300 W across all four channels
Temperature set point resolution 0.001 °K - typical value, steady state
Temperature control stability <1 mK
Set point temperature coefficient <5 ppm/°K
Temperature set point range -20.15 °C to +79.85 °C
NTC thermistor range 10 kΩ - 100 kΩ
Extended thermistor range 1 kΩ - 1MΩ (slightly lower resolution)
GENERAL
Mains input voltage 100 - 240 V AC, 50/60 Hz, 350 VA (typical power: 15 W)
Size (W x H x D) Half rack (203 mm) x 2U (89 mm) x 345 mm (8” x 3.5” x 13.6”)
Weight 4.1 kg
Operating temperature 0 °C to 70 °C
Storage temperature -20 °C to 85 °C
Relative humidity <90 % humidity, non-condensing
Indoor/outdoor use Indoor use only
Altitude <2000m
